2421 Agilis Class Antenna
2.4 Meter Carbon Fiber Flyaway Antenna

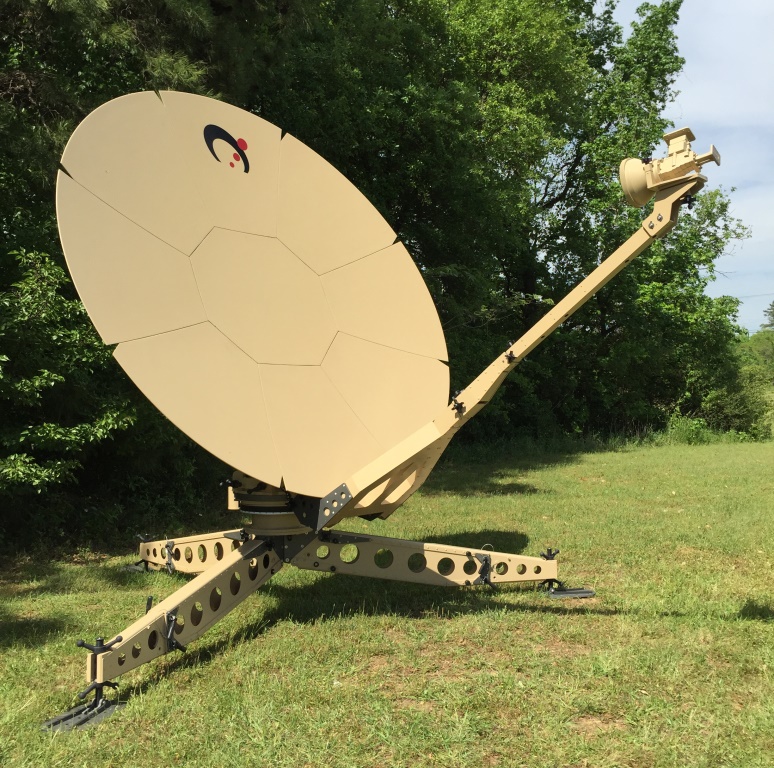

The Sat-Lite Technologies Model 2421 Agilis Carbon Fiber Flyaway Antenna offers superior performance in a lightweight, portable package. This antenna features a 9 piece carbon fiber segmented reflector designed to provide high gain and low cross pol characteristics. The standard antenna is designed for extremely rugged use and packs 6 high performance all weather cases. Optional package configurations are available. The tripod features a user friendly interface to allow for easy positioning and peaking on a satellite. In addition, the antenna components are modular in design which provide simple options for motorization and tracking requirements. The antenna can be assembled by a single person in 15 minutes or less.
The antenna is designed to meet international performance specifications for commercial / off-the-shelf applications and is readily available in C, X, Ku, and Ka band frequencies. Multiple integration packages are available with a quick change / quick pack configuration of the feedboom. The integrated boom assembly with BUC and LNB packs in a single case for easy and quick installation or packing.
- Intelsat / Eutelsat Compliant (with Appropriate Feed)
- Multi-Band C, X, Ku, and Ka band Frequencies
- Integrated Feedboom
- Compact Packaging
- Excellent Reliability
- Minimal Maintenance
- Less than 15 min Assembly Time
- Captive Hardware
Download Brochure
High-Bandwidth Broadcast, Emergency, Disaster Recovery, and Homeland Security
Sat-Lite Flyaway SNG antennas provide high-bandwidth connectivity solutions for a wide variety of up-linking applications. Like the vehicle mount solutions, Sat-Lite Technologies offers a host of flyaway antenna products that can be shipped anywhere and provide reliable high-power capability in a lightweight modular package. Sat-Lite flyaway antennas offer the most portable and dependable solutions for remote communications needs. The antennas and available controller options are preconfigured to operate with various amplifier and modem combinations.
Typical users may include the following:
- Federal and State emergency responders
- Homeland Security
- FEMA
- Oil and Gas Industry
- IP Based Communications
- Broadcast SNG
- Event Broadcasting
- Critical Up-Linking / Redundancy
- Tactical Operation Support
Whatever the industry, Sat-Lite can deliver a high performance flyaway antenna for reliable communication solutions.
RC350 Handheld Satellite Navigator
Satellite Acquisition Tool for Non-Motorized Antennas
The Sat-Lite RC350 Handheld Satellite Navigator couples the functionality of a motorized auto-locate antenna with the simplicity, reliability, and cost of a non- motorized antenna. The RC350 mounts directly to the antenna and contains a built in compass, inclinometer, GPS antenna, and DVB receiver. A simple web browser is all that is needed to interface with the RC350. The web browser interface offers an intuitive cock-pit style display that looks like a fully motorized system without the motors. The RC350 provides the user with actual antenna look angles as well as target look angles for the selected satellite. The user can easily and accurately position the antenna to the target look angles. Once the antenna is positioned properly, a lock status and signal strength are provided by the built in DVB receiver. The DVB receiver is easily programmed through the web browser for a host of DVB carriers available on multiple satellites of interest. The RC350 also has options to interface directly with a modem or provide a full spectrum analyzer display on the web browser. A Sat-Lite Flyaway Antenna with RC350 Handheld Satellite Navigator offers a reliable low cost alternative to a fully motorized auto acquire system without the need for a highly trained operator.
Additional information
| Configuration | Manual |
|---|---|
| Reflector Size | 2.4 m |
